MCL-LW-990(Type RFD)
High Tg, Low Transmission Loss Laminate Material
Product form
| CCL | MCL-LW-990(Type RFD) |
| Prepreg | GWA-990(Type D) |
Applications
- High frequency radar/antenna for automotive
- High frequency devices
Features
- Achieved low dielectric constant (Dk) (3.3 at 10 GHz) and low dissipation factor (Df) (0.0020 at 10 GHz) using original resin system and low Dk glass cloth.
- Improved transmission loss by approximately 30% at 77 GHz compared to our MCL-LW-910G, combined with smooth copper foil.
- Has excellent heat resistance and connection reliability.
Characteristics

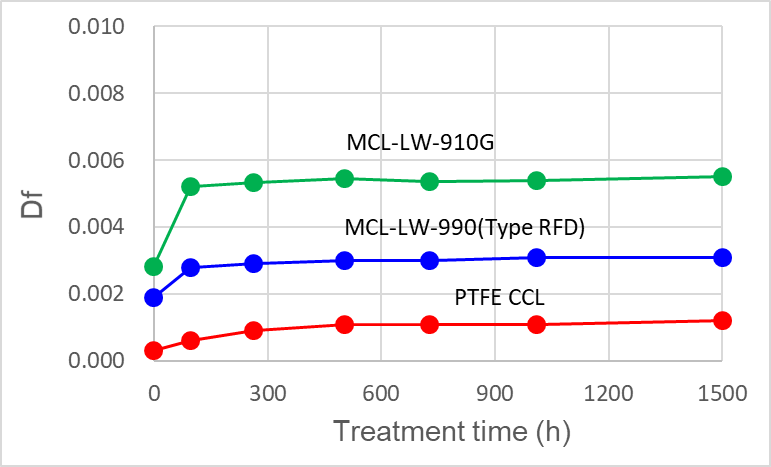

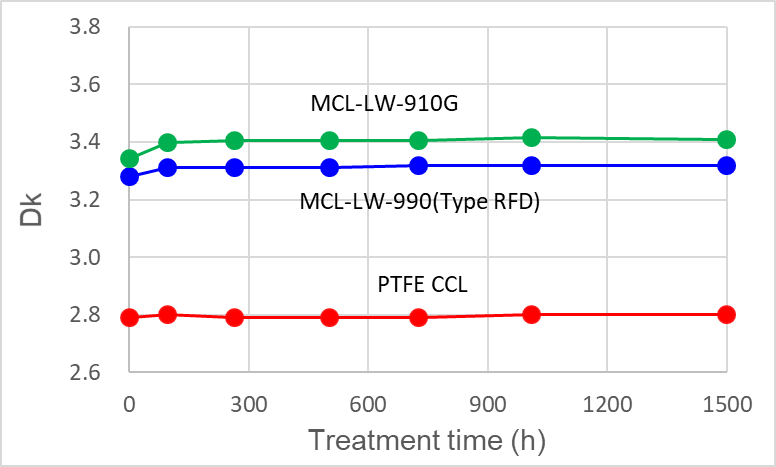

Dielectric Characterization Results (Aging test)
- Method ： Cavity Resonator
- Aging condition (Temperature & Humidity) ： 85℃/85%RH
- Measurement frequency ： 10 GHz

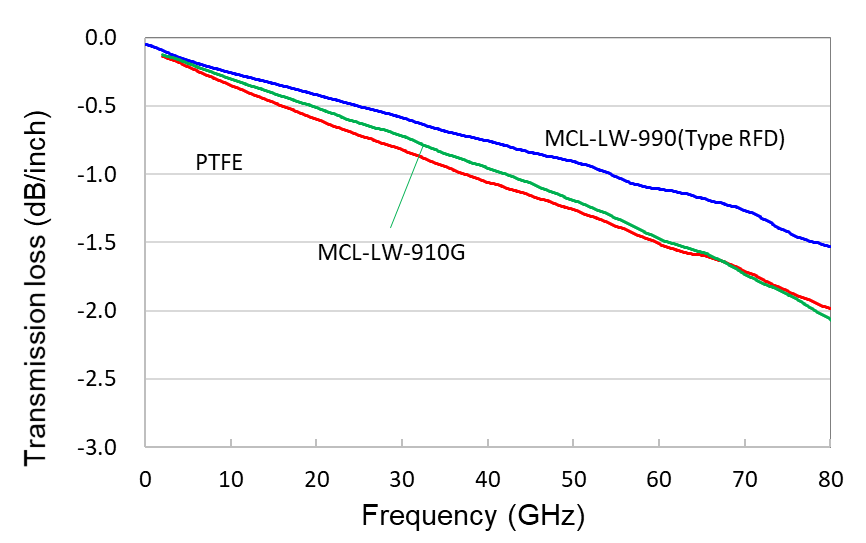

Transmission Loss
- Measurement Conditions
-
-
- Evaluation PWB ： Micro Strip Line
- Temperature & Humidity ： 25℃/60%RH
- Characteristic impedance ： Approx. 50Ω
- Proofreading method : TRL(Thru-Reflect-Line)
- Trace width (w)：0.3 mm
- Dielectric thickness (b)：0.127 mm
- Trace thickness (t1)：30 μm
- GND thickness (t2)：30 μm
- Copper foil
- MCL-LW-990(Type RFD) ： HVLP
- MCL-LW-910G ： HVLP
- PTFE ： Standard
Copper Clad Laminate
(t0.8mm)
| Item | Condition※3 | Unit | Actual Value | Reference (IPC-TM-650) |
|||
|---|---|---|---|---|---|---|---|
| MCL-LW-990(Type RFD) | |||||||
| Tg | TMA method | A | ℃ | 180–230 | 2.4.24 | ||
| DMA method | A | 220–260 | ‐ | ||||
| CTE ※1 | X (30–120℃) | A | ppm/℃ | 7–10 | ‐ | ||
| Y (30–120℃) | 7-10 | ||||||
| Z | (＜Tg) | A | 35–55 | 2.4.24 | |||
| (＞Tg) | A | 240–290 | |||||
| Solder Heat Resistance (260 ℃) | A | sec. | ≧300 | ‐ | |||
| T-260 (Without Copper) | A | min. | ≧60 | 2.4.24.1 | |||
| T-288 (Without Copper) | ≧60 | ||||||
| Decomposition Temperature (TGA method 5 % Weight Loss) | A | ℃ | 375–405 | 2.3.40 | |||
| Copper Peel Strength | 18 µm HVLP | A | kN/m | 0.4–0.6 | 2.4.8 | ||
| Flexural Modulus (Lengthwise) | A | GPa | 14–19 | 2.4.4 | |||
| Dielectric Constant | 10 GHz ※2 | A | － | 3.1–3.3 | IEC-62810 | ||
| Dissipation Factor | 10 GHz ※2 | A | － | 0.0018–0.0028 | |||
| Volume Resistivity | C-96/40/90 | Ω･cm | 1×1014–1×1016 | 2.5.7 | |||
| Surface Resistance | C-96/40/90 | Ω | 1×1013–1×1015 | ||||
| Insulation Resistance | A | Ω | 1×1013–1×1015 | ‐ | |||
| D-2/100 | 1×1012–1×1014 | ‐ | |||||
※1 Heating Rate: 10℃/min.(Comp.)
※2 Measured by Cavity Resonator.
※3 Refer to“Condition Note”
※ Above data are experimental results and not guaranteed.
Standard Specifications
Copper Clad Laminate
| Part Number | Type | Copper Foil Thickness | Thickness Code | Laminate Thickness | ||
|---|---|---|---|---|---|---|
| MCL-LW-990 |
(RFD) |
12 µm 18 µm |
M0.06 | 0.06 mm | ||
| M0.08 | 0.08 mm | |||||
| 0.1 | 0.10 mm | |||||
| 0.13 | 0.13 mm | |||||
| 0.26 | 0.25 mm | |||||
| 0.51 | 0.51 mm | |||||
※ Note1) Laminate thickness means dielectric layer thickness.
Prepreg
| Part Number | Type | Glass Cloth | Properties | ||
|---|---|---|---|---|---|
| Style | Resin Content (%) |
Dielectric Thickness after Lamination ※1 |
|||
| GWA-990 | 0.05 | (D1035N74) | 1035 | 74±2 | 0.064 mm |
| 0.06 | (D1078N66) | 1078 | 67±2 | 0.078 mm | |
| 0.06 | (D1078N73) | 1078 | 73±2 | 0.101 mm | |
| 0.06 | (D1078N75) | 1078 | 75±2 | 0.112 mm | |
| 0.08 | (D3313N59) | 3313 | 59±2 | 0.101 mm | |
| Reference (IPC-TM-650) | 2.3.16 | ‐ | |||
※1 The dielectric thickness after lamination is defined as the thickness of one sheet of prepreg when the resin flow is 0%. Values change depending on the press condition or inner layer pattern.
